EP900 Series Earplug

DESCRIPTION

Gaska Tape’s EP900 Series is a medium density closed-cell Polyvinyl Chloride foam. Previous testing of a high quality, die cut part (shaped for use as an ear plug) of .780” thickness and 0.53” diameter resulted in an average NRR rating of 31.3 when measured from 125 to 8000 Hertz (five subjects, average of nine hertz readings [Mean-2 times Standard Deviation]).

Characteristics common to all closed-cell vinyl foam products include the ability to make a long life seal against air, moisture, light and dust penetration. Closed-cell vinyl foam completely seals out air, moisture, light and dust when compressed 30% or more.

PERFORMANCE CHARACTERISTICS

• Slow recovery foam.
• Flexes to protect irregular surfaces.
• Available for die cutting when laminated.
• EP900 Series is provided in sheet form.
• Roll form is available in 0.500” thickness and under.
• Adhesives can be applied upon request.
• EP900 is cast on a 7 mil clay coated paper for a smooth surface.
• Can be made in a variety of colors.
• Bi-colors also available.

Click Here to download our Limited Warranties.

Click Here to download our Manufacturing Tolerances.

Click Here to learn “Why we have Storage Guidelines”.

ROLL SIZES

Available Thicknesses:
.079” – .787” (2.0mm – 20mm)

Available Widths:
.250” – 56” (6.4mm – 1422mm)

Available Lengths:
3.5’ (Sheets) – 150’ (1M – 46M)

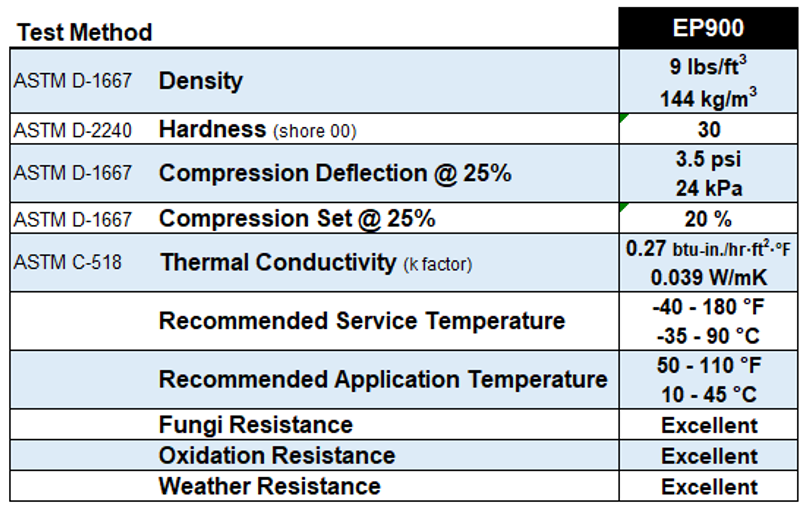

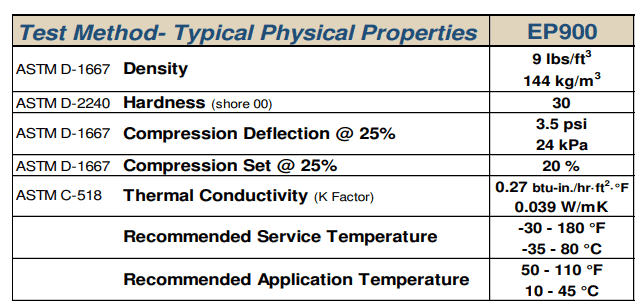

TYPICAL PHYSICAL PROPERTIES

NOTES:  The EP900 Series is a specialty product that will be quoted upon request based on thickness, width, volume, color, and application.

Typical performance properties and characteristics are based on samples tested and are not guaranteed for all samples of this product.

Data is intended as a guide only and is presented without guarantees and without assumption of liabilities resultant from the use of information provided. This data is not to be used for specification purposes.
