Products

SO500 Series

Low Density

DESCRIPTION

Gaska Tape’s SO500 Series is a specifically formulated, super soft, semi-open cell Polyvinyl Chloride foam that can be produced with or without adhesive on one side.

SO500 is formulated and manufactured for applications that require a very soft product with a very low force to compress.

This is an alternative to low perm urethane and mechanically crushed rubber foam where longer product life is necessary.

PERFORMANCE CHARACTERISTICS

Low compression with limited sealing ability.
Provides cushioning, vibration dampening, and sound deadening.
Conforms to irregular surfaces and curves and can be used as a stuffer.
Used in conjunction with thin gauge plastics and sheet metal to prevent over-bowing or over-flexing.
High-tack acrylic adhesive has a wide temperature service range.
SO500 Series is a self -extinguishing formulation and meets FMVSS 302A
SO510 is available on 84# polycoated release paper, 12pt release board, or laminated to polyester film to provide dimensional stability.
Specifically formulated to meet automotive specifications-see Gaska Tape Automotive Products on our website.
Black color standard, other colors available upon request.
Sulfur-Free

Click Here to download our Limited Warranties.

Click Here to download our Manufacturing Tolerances.

Click Here to learn “Why we have Storage Guidelines”.

ROLL SIZES

Available Thicknesses:
.125″ – 1.00″ (3.2mm- 25.4mm)

Available Widths:
.250″ – 57″ (6.4mm – 1448mm)

Available Lengths:
12′ – 152′ (4m- 46m)

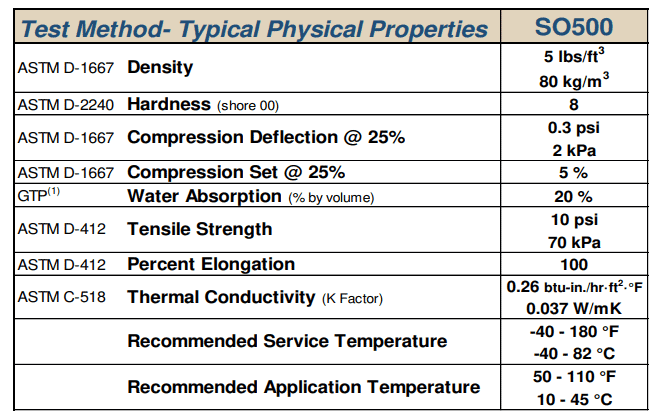

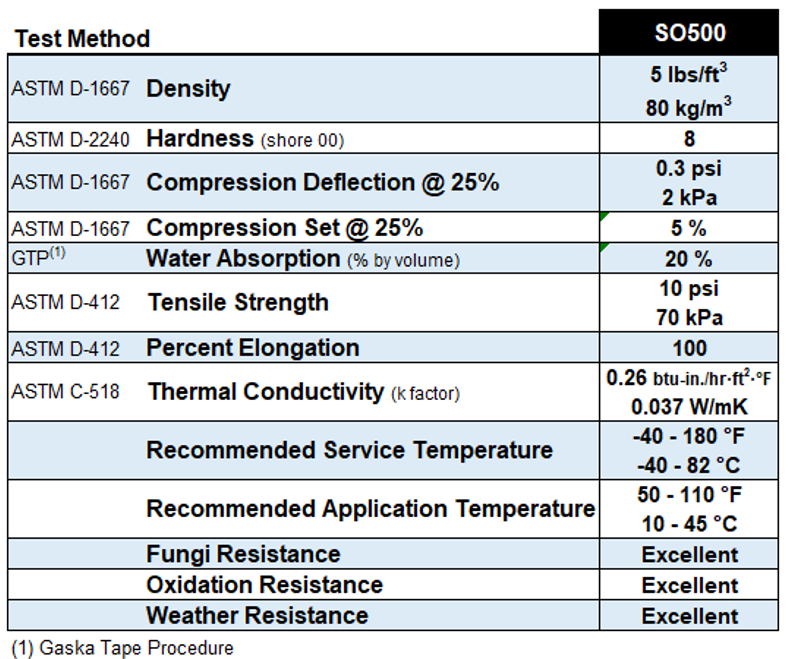

TYPICAL PHYSICAL PROPERTIES

NOTES: The length of the rolls vary depending on the thickness of the material. Gaska Tape offers standard length logs. Master logs are double the standard length plus 2′ and available upon request for quote.

Typical performance properties and characteristics are based on samples tested and are not guaranteed for all samples of this product.

Data is intended as a guide only and is presented without guarantees and without assumption of liabilities resultant from the use of information provided. This data is not to be used for specification purposes.
