V1100 Series Medium Density

DESCRIPTION

Gaska Tape’s V1100 Series product is a medium density closed-cell Polyvinyl Chloride foam.  The tape provides an excellent combination of flexibility and conformability with strength and wear resistance.  Performs in those “tough duty” applications where a tape must still flex to fit and seal.

Characteristics common to all closed-cell vinyl foam products include the ability to make a long life seal against air, moisture, light and dust penetration.  Closed-cell vinyl foam completely seals out air, moisture, light and dust when compressed 30% or more.

PERFORMANCE CHARACTERISTICS

• Absorbs shocks, cushions, deadens sound and eliminates excess vibration.
• Excellent dimensional stability and cushion against heavy loads.
• Insulates against temperature.
• V1110 is cast on a 5 mil supercalendered kraft 83# paper.
• V1115 is cast on a 2 mil polyester film to provide dimensional stability, and is a self-wound product.
• “Swirl-Free” foam that won’t move, twist or displace when penetrated by mechanical fasteners.
• V1100 foam density permits clean die cuts and ease of penetration by fasteners.
• Gray color standard.
• Other colors available upon request.

Click Here to download our Limited Warranties.

Click Here to download our Manufacturing Tolerances.

Click Here to learn “Why we have Storage Guidelines”.

ROLL SIZES

Available Thicknesses:
V1110   .063” – .500” (1.6mm – 12.7mm)
V1115   .079” – .250” (2mm – 6.4mm)

Available Widths:
.250” – 57” (6.4mm – 1448mm)

Available Lengths:
25’ – 302’ (7.6M – 92M)

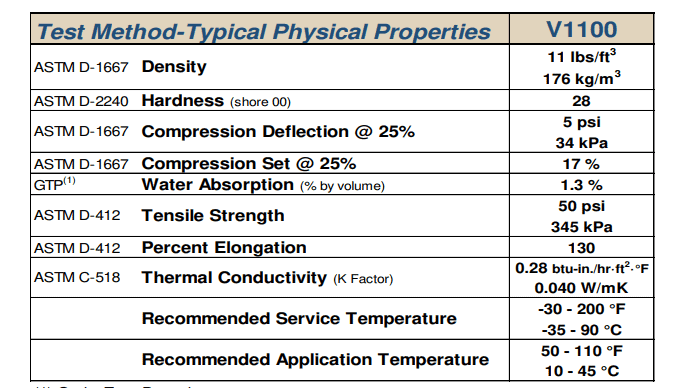

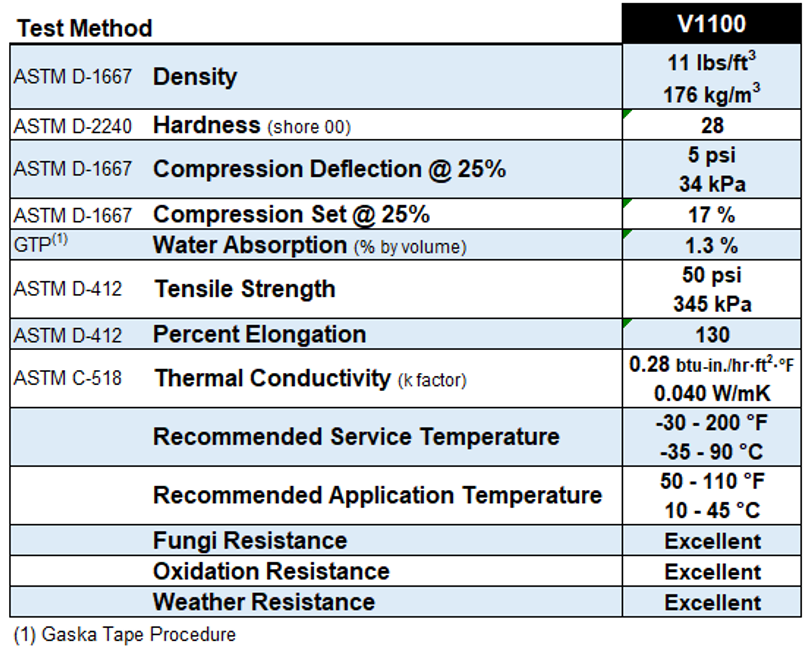

TYPICAL PHYSICAL PROPERTIES

NOTES:  The length of the rolls vary depending on the thickness of the material.  Gaska Tape offers standard length logs.  Master logs are double the standard length plus 2′ and available upon request for quote.

Typical performance properties and characteristics are based on samples tested and are not guaranteed for all samples of this product.

Data is intended as a guide only and is presented without guarantees and without assumption of liabilities resultant from the use of information provided. This data is not to be used for specification purposes.
