V2500 Series Heavy Density

DESCRIPTION

Gaska Tape’s V2500 Series product is a heavy density closed-cell Polyvinyl Chloride foam.  Designed for use in the most demanding foam sealing or cushioning applications.  High internal strength resists pressure from outside forces and high hardness resists deterioration.

Characteristics common to all closed-cell vinyl foam products include the ability to make a long life seal against air, moisture, light and dust penetration.  Closed-cell vinyl foam completely seals out air, moisture, light and dust when compressed 30% or more.

PERFORMANCE CHARACTERISTICS

• Our strongest standard V Series foam cushions, absorbs shock, and resists wear and abrasion in the most demanding applications.
• Swirl free for smooth fastener penetration.
• Insulates against temperature.
• V2510 is cast on a 5 mil 83# supercalendered kraft paper.
• V2515 is cast on a 2 mil polyester film to provide dimensional stability, and is a self-wound product.
• Foam density permits exacting die cuts and ease of penetration by fasteners.
• V2500 Series is the best in dimensional stability of the vinyl foams.
• Black color standard.
• Other colors available upon request.

Click Here to download our Limited Warranties.

Click Here to download our Manufacturing Tolerances.

Click Here to learn “Why we have Storage Guidelines”.

ROLL SIZES

Available Thicknesses:
V2510   .031” – .250” (0.8mm – 6.4mm)
V2515   .039” – .188” (1mm – 4.8mm)

Available Widths:
.250” – 57” (6.4mm – 1448mm)

Available Lengths:
25’ – 302’ (7.6M – 92M)

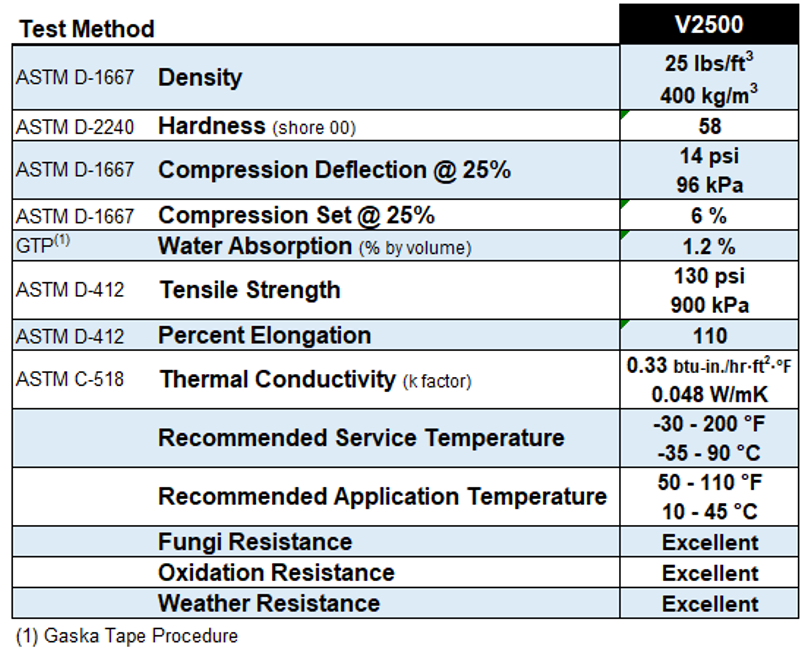

TYPICAL PHYSICAL PROPERTIES

NOTES:  The length of the rolls vary depending on the thickness of the material.  Gaska Tape offers standard length logs.  Master logs are double the standard length plus 2′ and available upon request for quote.

Typical performance properties and characteristics are based on samples tested and are not guaranteed for all samples of this product.

Data is intended as a guide only and is presented without guarantees and without assumption of liabilities resultant from the use of information provided. This data is not to be used for specification purposes.
